SD60 Single Coil Over Mount Motobilt - MB1549

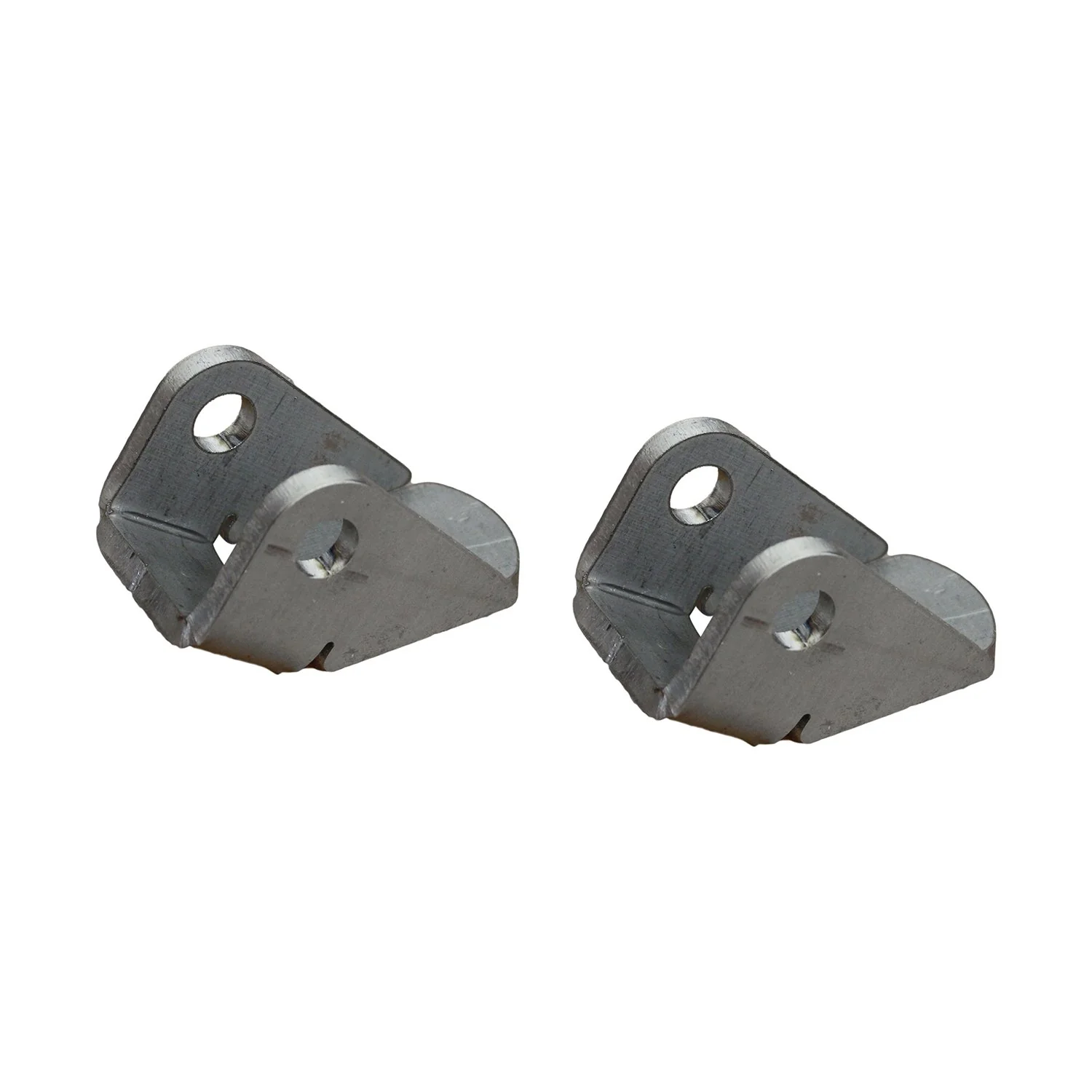

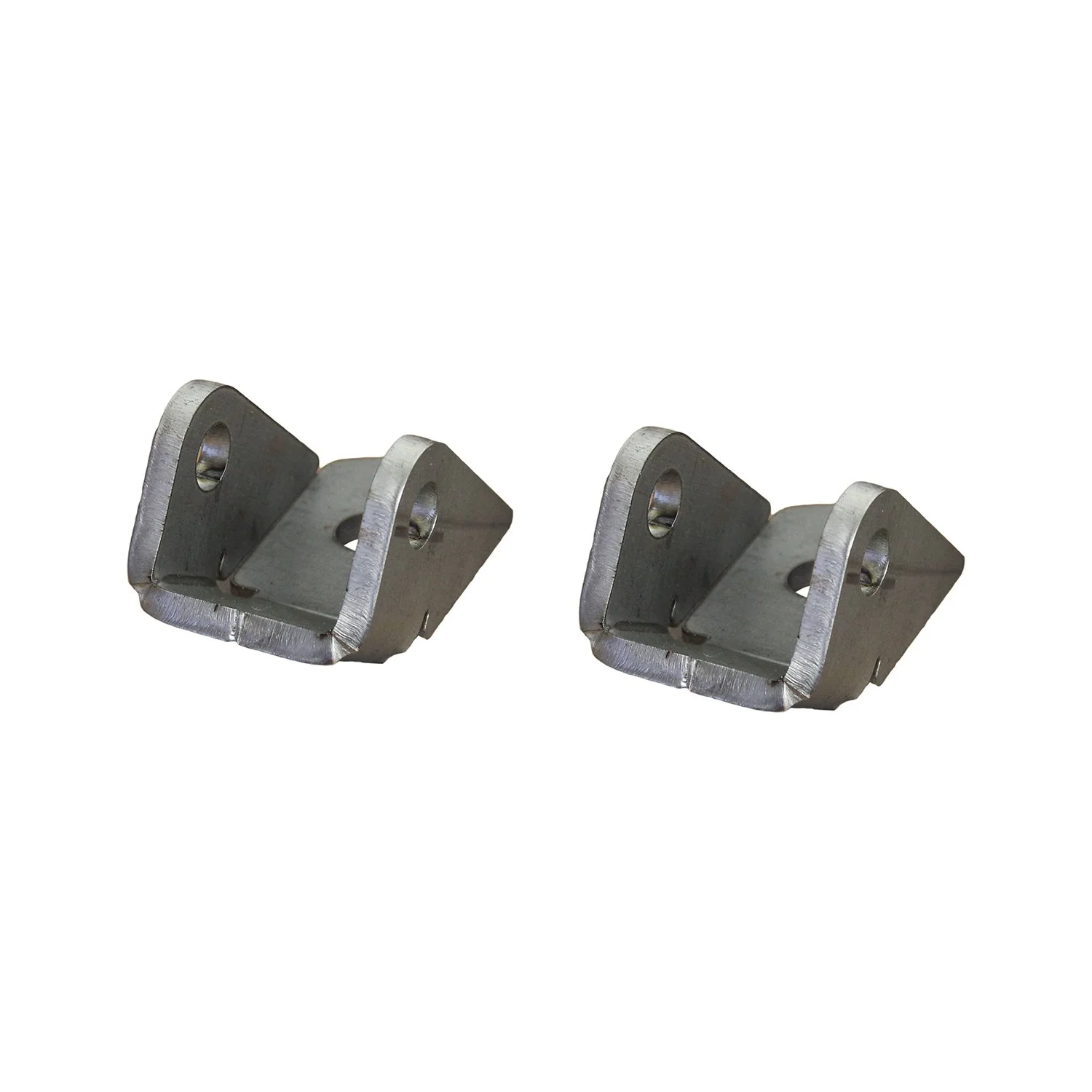

The Super Duty Dana 60 inner C coil over shock bracket set is manufactured from laser cut and formed 1/4 Inch steel plate. The inner C shock mounts are designed for 2.0 coil over shocks.

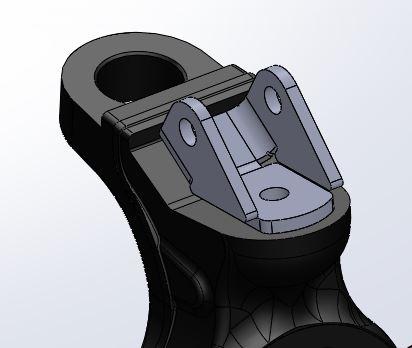

The shock mounts fit the 2005+ Dana 60 Super Duty Axle inner C. Simply bolt on to the top of the inner C where the factory coil spring mount is located. We recommend welding the shock mount to the inner C once you have it bolted in place. The inside mounting width is designed for 2.0 coils over shocks that have a mounting width of 1-1/2 Inch.

The bolt hole diameter in the shock brackets is 1/2 inch. On some coil over shocks you may have to opt for a wider spacer set to go from 1-1/4 to 1-1/2 Inch.

The company you choose to purchase coil over shocks from should be able to supply you with spacers for a 1-1/2 inch mounting width.

Sold as a pair.

Specifications:
