Roll Cage Bushing Mount Motobilt - MB2138

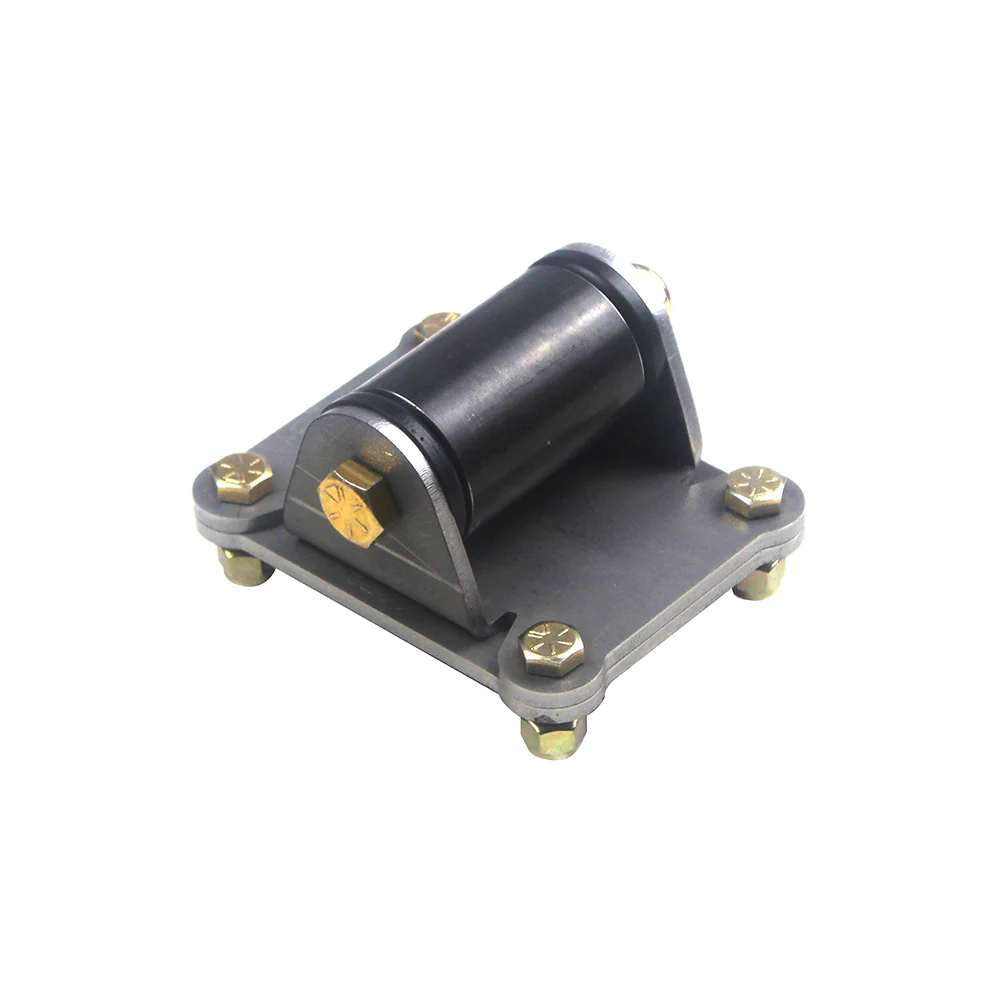

Motobilt has offered MB2007 Roll Cage Plates for years now.We have received requests to make it easier to tie cage mounting points to the frame. We designed the Roll Cage Bushing Mount to work with these plates. The Motobilt Roll Cage Bushing plates are sold in kit form. One MB2138 formed roll cage bushing plate and one MB2007 flat plate.

Both plates are CNC laser cut here in house on our fiber laser from 0.1875 inch steel plate. The bushing plate is then CNC formed on our press brake. This part is shipped bare steel ready for you to weld together. Additionally the outer and inner steel sleeves and poly bushings are included in the kit. Hardware for the kit is included.

Bolt pattern measures 4.0 inch x 3.0 inch, Hole diameter in cage plate is 0.375 inch, Hole Diameter for poly bushing is 0.5 inch

Details:

• Sold As Kit
• Hardware Included Yes
• Finish Bare
• Material Steel
• Thickness 0.1875 inch
• Cut CNC Laser Cut
• Formed CNC Formed
• Bushing Poly Bushing
• Bolt Pattern 4.0 inch x 3.0 inch
• Bolt Hole Diameter 0.375 inch
• Bushing Hole Diameter 0.5 inch

Specifications:
