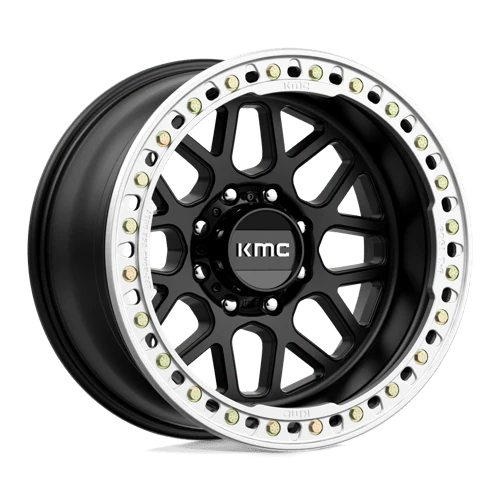

KM235 20X10 8X170 S-BLK -48MM - KM23521087748N
KM235 20X10 8X170 S-BLK -48MM
Specifications:
| Size Description | 20X10 |
| Diameter | 20.0 |
| Width | 10.0 |
| Lug Count | 8 |
| Bolt Pattern Metric | 8X170 |
| Bolt Pattern Standard | 8X170 |
| Offset | -48 |
| Backspacing | 3.61 |
| Center Bore | 125.1 |
| Load Rating Metric | 748.75 |
| Load Rating Standard | 1650.79 |
| Division | 10 |
| Barrel Config | S |
| Cap Part Number | T163H170-8-H77-S2 |
| Certification | SAEJ2530 |
| Other Accessories | BEAD RING : MA-2020A-20-M |
| Wheel Weight | 44.42 |
| Brand Description | KMC |
| Display Style Number | 235 |
| Style | KM235 GRENADE CRAWL BEADLOCK |
| Source Country | CN |
| Box Label Description | S-BLK |
| Finish Warranty | ONE YEAR |
| Structural Warranty | LIFETIME |
| Smallest Bolt Pattern | 165 |
| Largest Bolt Pattern | 180 |
| Min Lug Count | 5 |
| Max Lug Count | 8 |
| Open End Cap | REMOVE CENTER PC |
| Rivet Part Number | BEAD RING BOLT : MDM-110-X |
| Rivet Quantity | 24 |
| Bead Lock | 1 |
| Not DOT Approved | 1 |
| Patent | D937170 |
| Lip Depth | 4.74 |
| Construction Type | Cast Aluminum |
| Material | CA |
| Fancy Finish Description | SATIN BLACK |
| Bolt Pattern MM1 | 170 |
| Prop65 Chemical 1 | Chromium (hexavalent compounds) |
| Prop65 Chemical 2 | Nickel (Metallic) |
| Prop65 Chemical 3 | Lead |
$752.00
KM235 20X10 8X170 S-BLK -48MM - KM23521087748N—
$752.00
