Ford Super Duty Dana 60 Axle Truss Motobilt - MB4076

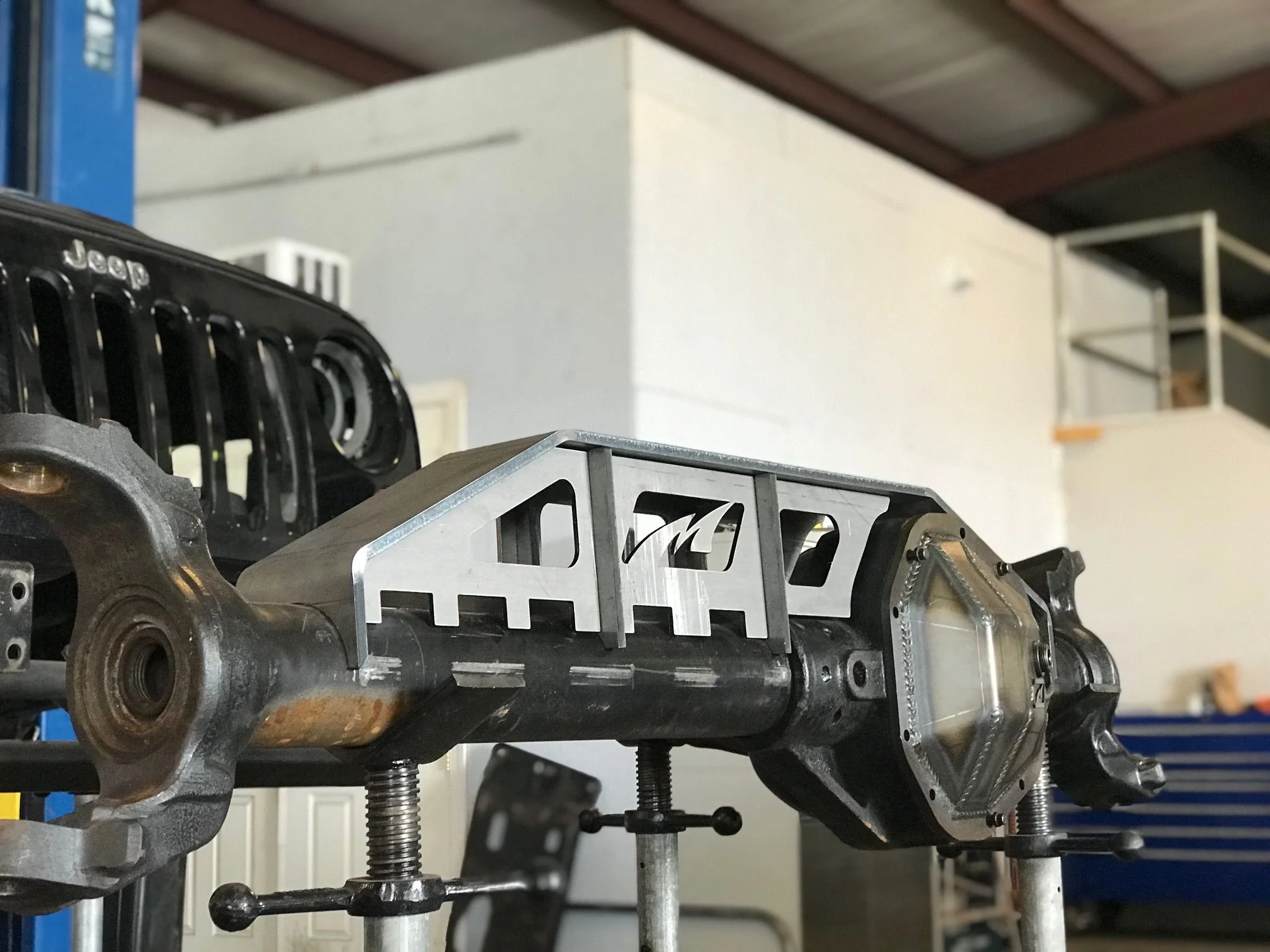

The Ford Super Duty Dana 60 truss from Motobilt will greatly increase the strength of your front axle. The main structure of this axle truss is laser cut and cnc bent from 3/8 inch thick steel plate. Supporting the main truss are 3/8 inch and 3/16 inch structural bracing. The top portion of the truss is aproximately 5.5 inches wide and provides ample room for a suspension link mount to be welded onto it. Can be used for a 3 or 4 link setup.
Features:

• Material: Steel
• Thickness: 3/8 Inch
• 3/8 inch thick laser cut steel plate main truss
• 3/8 inch and 3/16 inch steel plate support structure
• Full length span of axle for increased strength
• Large flat mounting surface for link brackets.
• Notes: Requires removal of factory brackets and housing on driver's side must be trimmed aproximately 2 inches
• Fits: 2005 and Up Ford Super Duty

Specifications:
