Ford 10.25/10.5 Sterling Rear Axle Trail Truss Motobilt - MB4069

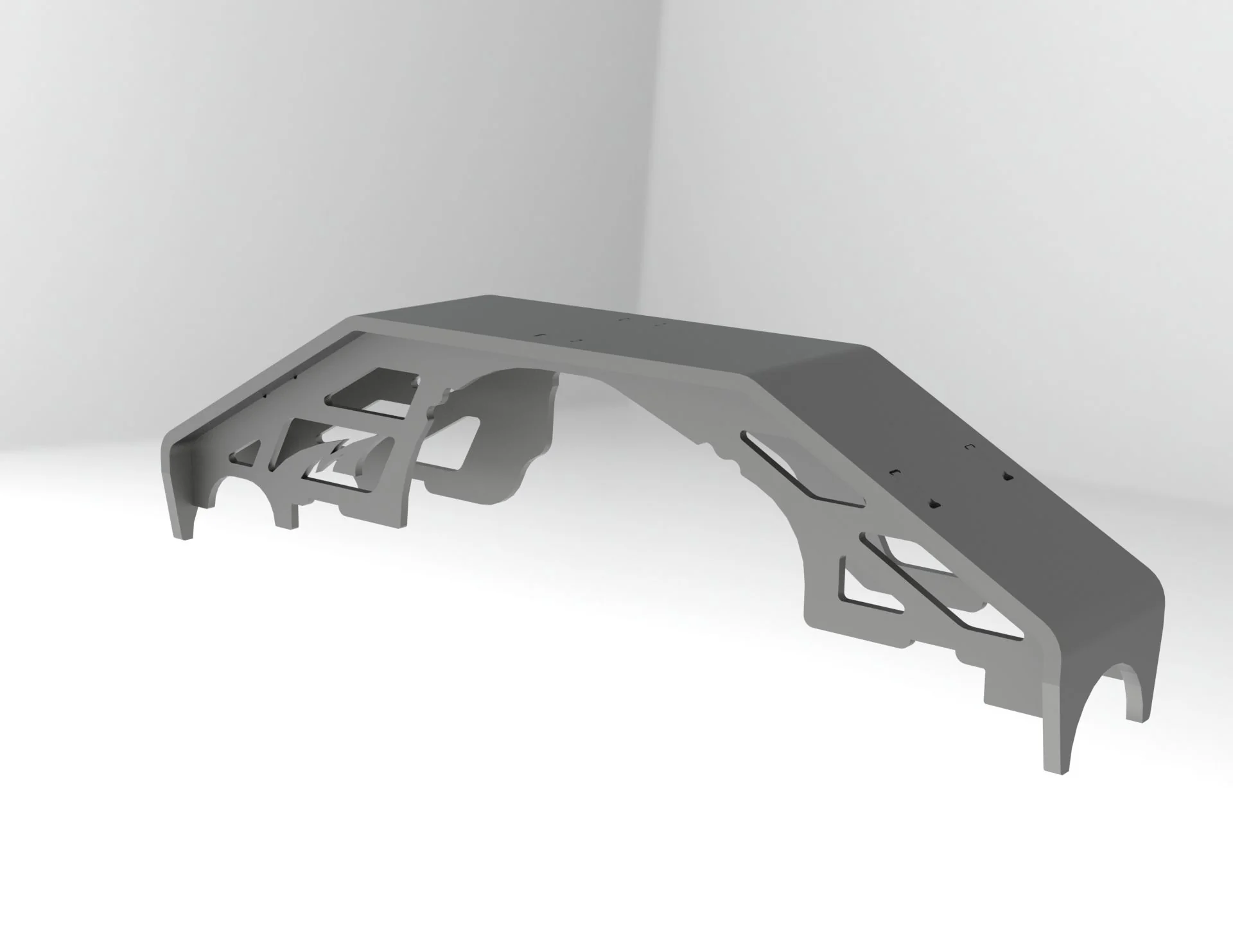

This rear axle truss fits the Ford 10.25 / 10.5 Sterling rear axle. This Ford trail truss main structer is made from laser cut 3/8 inch thick steel plate and the support structure from 1/4 inch steel plate. The over all length of the trus is 27.25 inch This is a low profile design so you will have plenty of clearance when mouting link tabs on top of the axle. This will fit a centered 10.25 or 10.5 rear axle.

The truss follows the contours of the cast center section very closely so due to variances over the years there may be some trimming needed. Due to its narrow design it will work with a link suspension or with leaf springs. The low profile design also makes it much easier to fit in many custom applications. This is a weld on design and consists of a main bridge structure and 2 support plates. It ships raw steel.
Features:

• Ford 10.25 / 10.5 Sterling rear axle truss
• Fit a centered 10.25 or 10.5 rear axle
• 3/8 inch thick steel plate
• support structure from 1/4 inch steel plate
• over all length of the trus is 27.25 inch
• Ships raw steel
• Sold as each
