6" RTS SYS W/DLSS RESI SHKS 2020-22 GM 2500HD 4WD. - K1160DL

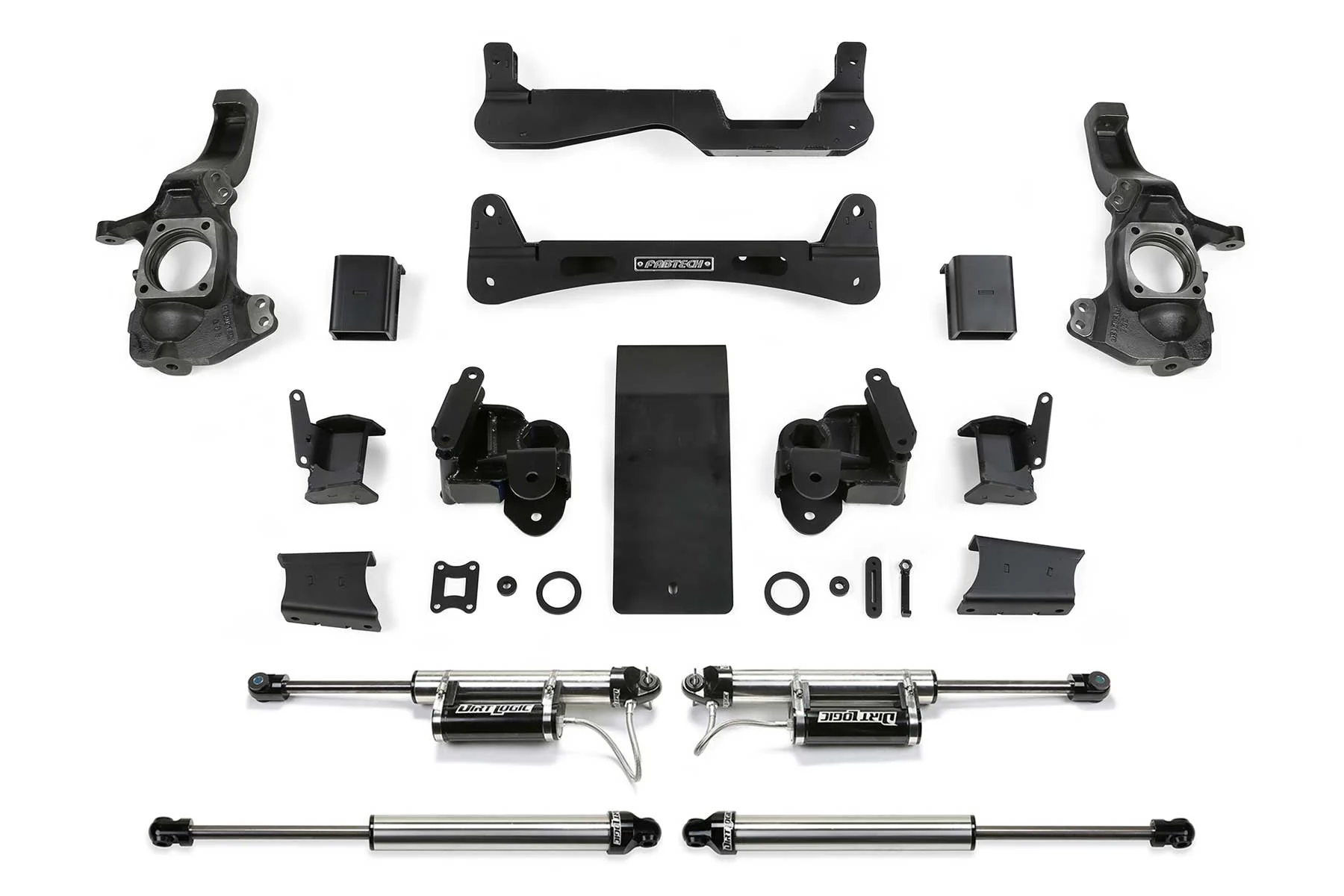

This high quality 6" lift kit for the GMC Sierra and Chevy Silverado 2500HD has been designed to improve the offroad capability of the vehicle while providing a smooth highway ride. The Fabtech lift kit retains the factory load carrying capacity of the vehicle that is perfect for owners that use their truck for towing and hauling. The heart of this lift kit is Fabtechs cutting edge RTS design. The RTS is a bracket system that keeps the torsion bars in the factory location while providing lift. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading. It provides a very clean appearance to the vehicle. Another important aspect of this GM 2500HD lift kit is the lower control arm crossmembers. They are arched at the bottom to provide ground clearance and have a skid plate to protect the front differential against offroad obstacles. The crossmembers and bracketry are built with 1/4" thick steel that provides strength and rigidity to the vehicles suspension. The superior build quality and design of the components allows for a fast installation time with only four holes to drill and no cutting of the front diff housing. This heavy duty GMC Sierra and Chevy Silverado 2500HD lift kit is built with the highest quality components and is designed to provide years of trouble free service while offering a great ride. FEATURES: Torsion bars remain in the factory frame location for maximum ground clearance. RTS Torsion bar brackets index the bars at factory setting for a smooth ride. Heavy duty bracketry constructed of 1/4" thick steel for additional suspension strength. Near factory track width helps keep tires under the fenders. Front & Rear bump stop brackets eliminate over cycling of suspension. CROSSMEMBERS: 1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strengt

Specifications:

California Proposition 65	WARNING: Cancer & Reproductive Harm and image
Title	Fabtech 6" RTS SYS W/DLSS RESI SHKS 2020-22 GM 2500HD 4WD
Description_ASC	TIRE SIZE - 37/12.5R18 WHEEL - 18X9 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.5R20 WHEEL - 20X9 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.5R22 WHEEL - 22X9 W/5 3/4" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 20. DOES NOT FIT STANDARD CAB MODELS.; 167. FITS DIESEL MODELS ONLY; 199. DOES NOT FIT GMC AT4 OR CHEVY TRAIL BOSS MODELS
Description_DEF	Suspension Lift Kit
Description_DES	6" RTS SYS W/DLSS RESI SHKS 2020-22 GM 2500HD 4WD
Description_EXT	6" RTS SYS W/DLSS RESI SHKS 2020-22 GM 2500HD 4WD.
Description_INV	Fabtech-6" RTS SYS W/DLSS RE
Description_MKT	This high quality 6" lift kit for the GMC Sierra and Chevy Silverado 2500HD has been designed to improve the offroad capability of the vehicle while providing a smooth highway ride. The Fabtech lift kit retains the factory load carrying capacity of the vehicle that is perfect for owners that use their truck for towing and hauling. The heart of this lift kit is Fabtechs cutting edge RTS design. The RTS is a bracket system that keeps the torsion bars in the factory location while providing lift. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading. It provides a very clean appearance to the vehicle. Another important aspect of this GM 2500HD lift kit is the lower control arm crossmembers. They are arched at the bottom to provide ground clearance and have a skid plate to protect the front differential against offroad obstacles. The crossmembers and bracketry are built with 1/4" thick steel that provides strength and rigidity to the vehicles suspension. The superior build quality and design of the components allows for a fast installation time with only four holes to drill and no cutting of the front diff housing. This heavy duty GMC Sierra and Chevy Silverado 2500HD lift kit is built with the highest quality components and is designed to provide years of trouble free service while offering a great ride. FEATURES: Torsion bars remain in the factory frame location for maximum ground clearance. RTS Torsion bar brackets index the bars at factory setting for a smooth ride. Heavy duty bracketry constructed of 1/4" thick steel for additional suspension strength. Near factory track width helps keep tires under the fenders. Front & Rear bump stop brackets eliminate over cycling of suspension. CROSSMEMBERS: 1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strengt
Description_SHO	6" RTS SYS W/DLSS RE

This Part Fits:

Year	Make	Model	Submodel	Notes
2022	Chevrolet	Silverado 2500 HD	Custom
2020	Chevrolet	Silverado 2500 HD	High Country
2021	Chevrolet	Silverado 2500 HD	High Country
2022	Chevrolet	Silverado 2500 HD	High Country
2020	Chevrolet	Silverado 2500 HD	LT
2021	Chevrolet	Silverado 2500 HD	LT
2022	Chevrolet	Silverado 2500 HD	LT
2020	Chevrolet	Silverado 2500 HD	LTZ
2021	Chevrolet	Silverado 2500 HD	LTZ
2022	Chevrolet	Silverado 2500 HD	LTZ
2022	Chevrolet	Silverado 2500 HD	WT
2020	Chevrolet	Silverado 3500 HD	LT
2021	Chevrolet	Silverado 3500 HD	LT
2020	Chevrolet	Silverado 3500 HD	LTZ
2021	Chevrolet	Silverado 3500 HD	LTZ
2020	GMC	Sierra 2500 HD	AT4
2021	GMC	Sierra 2500 HD	AT4
2022	GMC	Sierra 2500 HD	AT4
2020	GMC	Sierra 2500 HD	Base
2021	GMC	Sierra 2500 HD	Base
2020	GMC	Sierra 2500 HD	Denali
2021	GMC	Sierra 2500 HD	Denali
2022	GMC	Sierra 2500 HD	Denali
2020	GMC	Sierra 2500 HD	SLE
2021	GMC	Sierra 2500 HD	SLE
2022	GMC	Sierra 2500 HD	SLE
2020	GMC	Sierra 2500 HD	SLT
2021	GMC	Sierra 2500 HD	SLT
2022	GMC	Sierra 2500 HD	SLT
2020	GMC	Sierra 3500 HD	Base
2021	GMC	Sierra 3500 HD	Base
2020	GMC	Sierra 3500 HD	SLE
2021	GMC	Sierra 3500 HD	SLE
2020	GMC	Sierra 3500 HD	SLT
2021	GMC	Sierra 3500 HD	SLT
