5" TRAIL LT W/ DLSS RESI 2007-18 JEEP JK 4-DOOR. - K4071DL

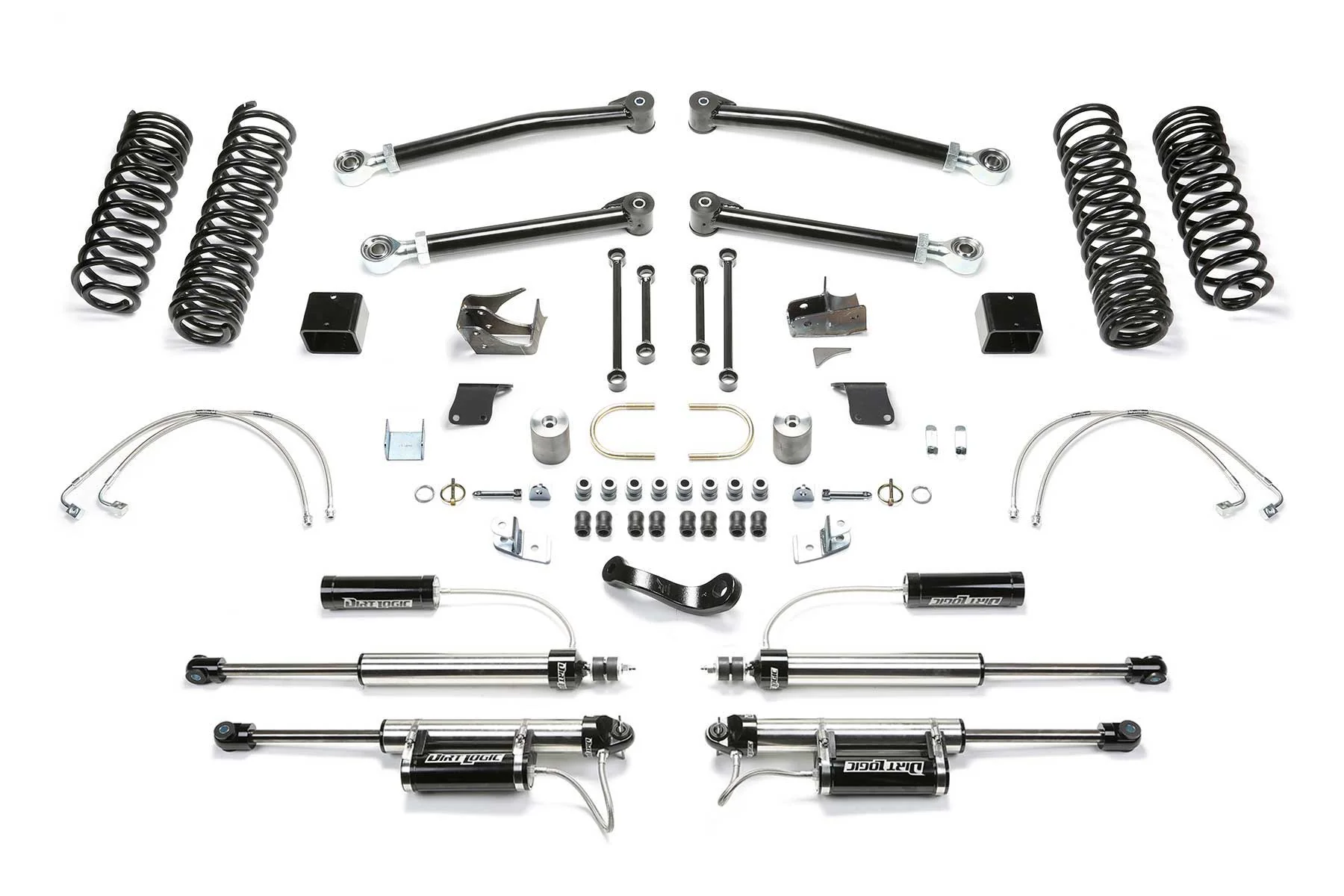

Utilizing the factory link arm mounts Fabtech's Trail short arm suspensions are built for aggressive offroad use while providing a smooth and quite highway ride. Each system has features and benefits that address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. The Trail system replaces the four lower link arms due to their vulnerability to offroad obstacles. Link arms come with large poly urethane bushings on one end with internal threads on the other to accept the ground breaking Fabtech 5 Ton Joint for longevity and a quite ride. System includes dual rate Long Travel coil springs that provide factory load carrying capacity with a smooth ride. The flexible coil design offers an extended travel range for aggressive rock crawling with great highway manners. Includes Lower Short Arm Links Front & Rear, Long Travel Coil Springs Front & Rear, Adjustable Track Bar Front, Sway Bar Links Front, Track Bar Bracket w/ Support Rear, Brake Lines Front & Rear, E Brake Bracket, Front Bump Stop Extensions, Rear Bump Stop Brackets and Dirt Logic 2.25 reservoir shocks.

Specifications:

California Proposition 65	WARNING: Cancer & Reproductive Harm and image
Title	Fabtech 5" TRAIL LT W/ DLSS RESI 2007-18 JEEP JK 4-DOOR
Description_ASC	TIRE SIZE - 37/12.50R17 Wheel - 17X9 W/4 1/2" BS W/CUTTING; TIRE SIZE - 37/12.50R18 Wheel - 18X9 W/4 1/2" BS W/CUTTING; TIRE SIZE - 37/12.50R20 Wheel - 20X9 W/5" BS W/CUTTING; W/TUBE FENDERS: TIRE SIZE - 37/12.50R17 Wheel - 17X9 W/4 1/2" BS W/NO TRIMMING; TIRE SIZE - 40/13.50R17 Wheel - 17X9 W/4 1/2" BS W/CUTTING; 50. INSTALLATION REQUIRES WELDING.; 174. BILLET CLAMP PART # (FTS89935) ARE NOT APPLICABLE FOR USE ON VEHICLES FRONT POSITION; 249. FOR HEAVY OFFROAD USE, FRONT DRIVESHAFT IS REQUIRED. ORDER P/N FTS94057.; 250. FOR HEAVY OFFROAD USE, REAR DRIVESHAFT IS REQUIRED. SEE A QUALITY DRIVELINE SUPPLIER TO ORDER.
Description_DEF	Suspension Lift Kit
Description_DES	5" TRAIL LT W/ DLSS RESI 2007-18 JEEP JK 4-DOOR
Description_EXT	5" TRAIL LT W/ DLSS RESI 2007-18 JEEP JK 4-DOOR.
Description_INV	Fabtech-5" TRAIL LT W/ DLSS
Description_MKT	Utilizing the factory link arm mounts Fabtech's Trail short arm suspensions are built for aggressive offroad use while providing a smooth and quite highway ride. Each system has features and benefits that address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. The Trail system replaces the four lower link arms due to their vulnerability to offroad obstacles. Link arms come with large poly urethane bushings on one end with internal threads on the other to accept the ground breaking Fabtech 5 Ton Joint for longevity and a quite ride. System includes dual rate Long Travel coil springs that provide factory load carrying capacity with a smooth ride. The flexible coil design offers an extended travel range for aggressive rock crawling with great highway manners. Includes Lower Short Arm Links Front & Rear, Long Travel Coil Springs Front & Rear, Adjustable Track Bar Front, Sway Bar Links Front, Track Bar Bracket w/ Support Rear, Brake Lines Front & Rear, E Brake Bracket, Front Bump Stop Extensions, Rear Bump Stop Brackets and Dirt Logic 2.25 reservoir shocks.
Description_SHO	5" TRAIL LT W/ DLSS

This Part Fits:

Year	Make	Model	Submodel	Notes
2012	Jeep	Wrangler	Unlimited
2011	Jeep	Wrangler	Unlimited 70th Anniversary
2012	Jeep	Wrangler	Unlimited Altitude
2015	Jeep	Wrangler	Unlimited Hard Rock
2010,2012	Jeep	Wrangler	Unlimited Mountain
2007	Jeep	Wrangler	Unlimited Rubicon
2008	Jeep	Wrangler	Unlimited Rubicon
2009	Jeep	Wrangler	Unlimited Rubicon
2010	Jeep	Wrangler	Unlimited Rubicon
2011	Jeep	Wrangler	Unlimited Rubicon
2012	Jeep	Wrangler	Unlimited Rubicon
2013	Jeep	Wrangler	Unlimited Rubicon
2014	Jeep	Wrangler	Unlimited Rubicon
2015	Jeep	Wrangler	Unlimited Rubicon
2016	Jeep	Wrangler	Unlimited Rubicon
2017	Jeep	Wrangler	Unlimited Rubicon
2007	Jeep	Wrangler	Unlimited Sahara
2008	Jeep	Wrangler	Unlimited Sahara
2009	Jeep	Wrangler	Unlimited Sahara
2010	Jeep	Wrangler	Unlimited Sahara
2011	Jeep	Wrangler	Unlimited Sahara
2012	Jeep	Wrangler	Unlimited Sahara
2013	Jeep	Wrangler	Unlimited Sahara
2014	Jeep	Wrangler	Unlimited Sahara
2015	Jeep	Wrangler	Unlimited Sahara
2016	Jeep	Wrangler	Unlimited Sahara
2017	Jeep	Wrangler	Unlimited Sahara
2010	Jeep	Wrangler	Unlimited Sport
2011	Jeep	Wrangler	Unlimited Sport
2012	Jeep	Wrangler	Unlimited Sport
2013	Jeep	Wrangler	Unlimited Sport
2014	Jeep	Wrangler	Unlimited Sport
2015	Jeep	Wrangler	Unlimited Sport
2016	Jeep	Wrangler	Unlimited Sport
2017	Jeep	Wrangler	Unlimited Sport
2016	Jeep	Wrangler	Unlimited Sport S
2014	Jeep	Wrangler	Unlimited Willys Wheeler
2007	Jeep	Wrangler	Unlimited X
2008	Jeep	Wrangler	Unlimited X
2009	Jeep	Wrangler	Unlimited X
2010	Jeep	Wrangler	Unlimited X
2011	Jeep	Wrangler	Unlimited X
2018	Jeep	Wrangler JK	Rubicon
2018	Jeep	Wrangler JK	Sahara
2018	Jeep	Wrangler JK	Sport
2018	Jeep	Wrangler JK	Unlimited Rubicon
2018	Jeep	Wrangler JK	Unlimited Sahara
2018	Jeep	Wrangler JK	Unlimited Sport
