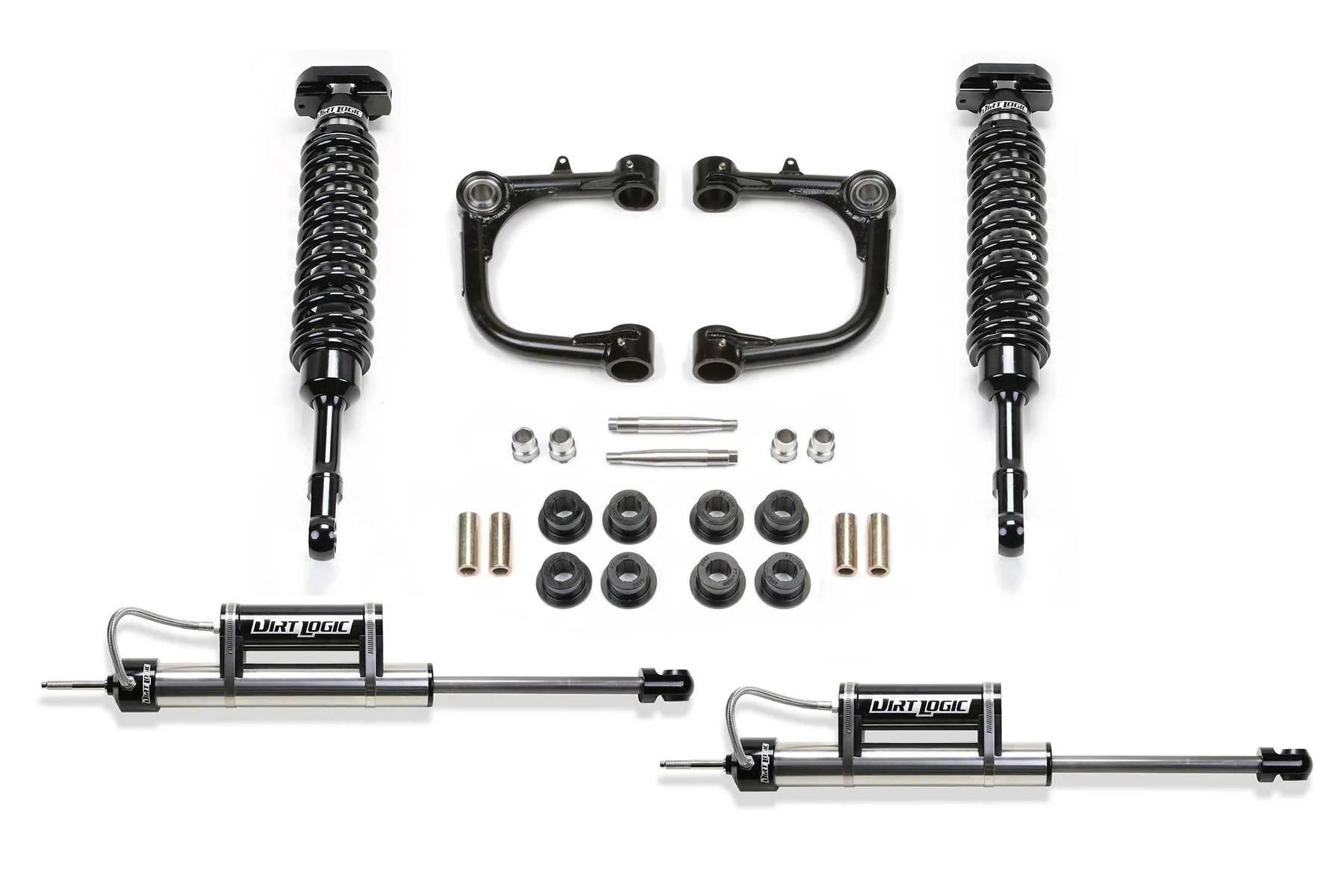

3" UCA & DLSS 2.5 C/O SYS W/ DLSS RESI RR SHKS 05-14 TOYOTA TACOMA 2WD/4WD. - K7032DL

These arms eliminate upper ball joints w/ super strong 1'' ID Stainless American Uniballs. Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used with Dirt Logic 2.5 Stainless Steel Coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs. Built with same materials as found on Trophy Trucks. .120'' Wall 4130 Chromoly Tubing. 1.25'' OD. .250'' wall DOM Bushing Barrels. 1'' ID Stainless Steel American Uniball. 17-4 Stainless Misalignments. Heat Treated 4340 Tapered Uniball Pins. Includes rear 2.25 Dirt Logic Stainless Steel reservior shocks.

Specifications:

California Proposition 65	WARNING: Cancer & Reproductive Harm and image
Title	Fabtech 3" UCA & DLSS 2.5 C/O SYS W/ DLSS RESI RR SHKS 05-14 TOYOTA TACOMA 2WD/4WD
Description_ASC	TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 275/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 275/70R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING
Description_DEF	Suspension Lift Kit
Description_DES	3" UCA & DLSS 2.5 C/O SYS W/ DLSS RESI RR SHKS 05-14 TOYOTA TACOMA 2WD/4WD
Description_EXT	3" UCA & DLSS 2.5 C/O SYS W/ DLSS RESI RR SHKS 05-14 TOYOTA TACOMA 2WD/4WD.
Description_INV	Fabtech-3" UCA & DLSS 2.5 C/
Description_MKT	These arms eliminate upper ball joints w/ super strong 1'' ID Stainless American Uniballs. Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used with Dirt Logic 2.5 Stainless Steel Coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs. Built with same materials as found on Trophy Trucks. .120'' Wall 4130 Chromoly Tubing. 1.25'' OD. .250'' wall DOM Bushing Barrels. 1'' ID Stainless Steel American Uniball. 17-4 Stainless Misalignments. Heat Treated 4340 Tapered Uniball Pins. Includes rear 2.25 Dirt Logic Stainless Steel reservior shocks.
Description_SHO	3" UCA & DLSS 2.5 C/

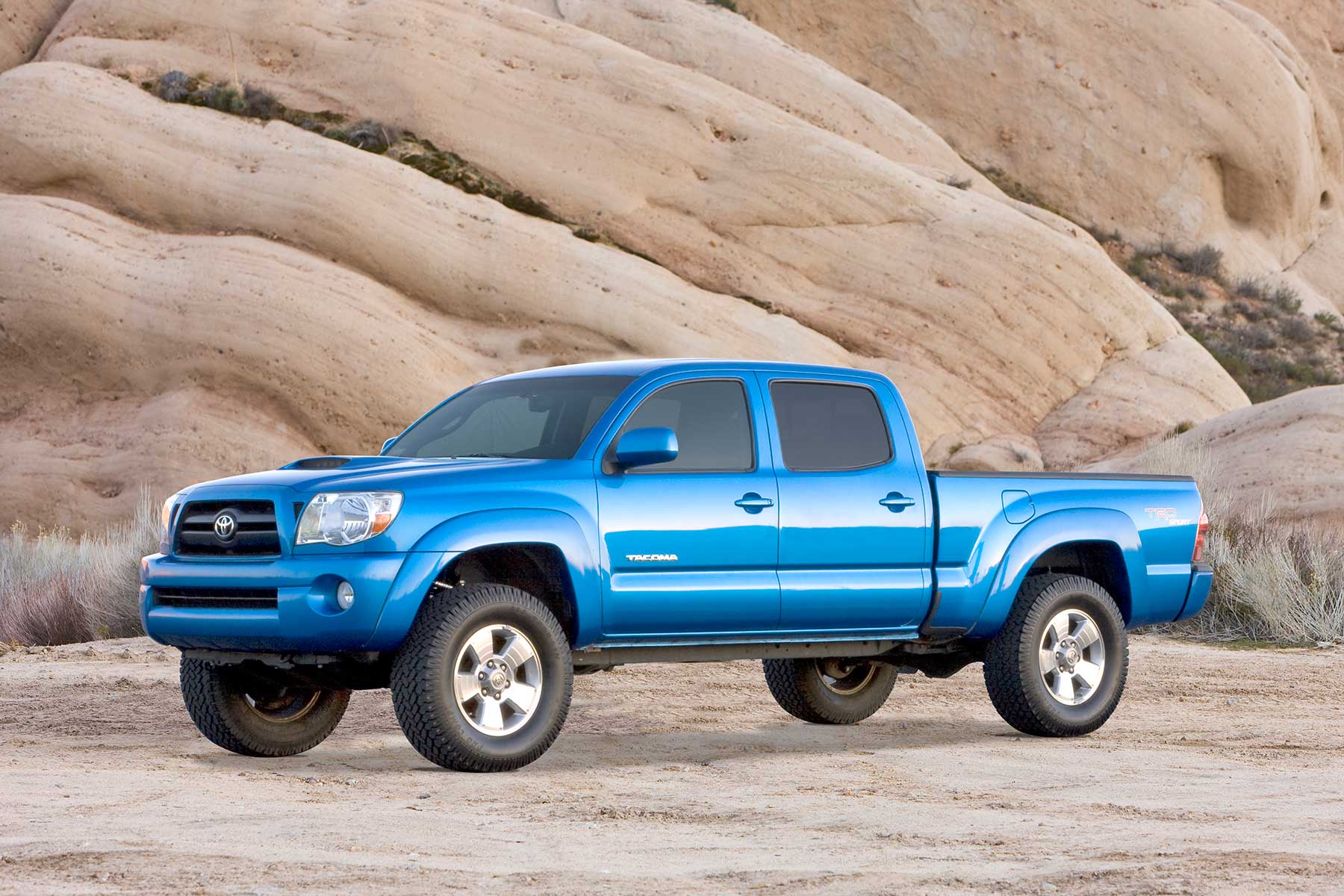

This Part Fits:

Year	Make	Model	Submodel	Notes
2005	Toyota	Tacoma	Base	6 LUG,6 LUG
2006	Toyota	Tacoma	Base	6 LUG,6 LUG
2007	Toyota	Tacoma	Base	6 LUG,6 LUG
2008	Toyota	Tacoma	Base	6 LUG,6 LUG
2009	Toyota	Tacoma	Base	6 LUG,6 LUG
2010	Toyota	Tacoma	Base	6 LUG,6 LUG
2011	Toyota	Tacoma	Base	6 LUG,6 LUG
2012	Toyota	Tacoma	Base	6 LUG,6 LUG
2013	Toyota	Tacoma	Base	6 LUG,6 LUG
2014	Toyota	Tacoma	Base	6 LUG,6 LUG
2006	Toyota	Tacoma	Base Prerunner
2005	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2006	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2007	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2008	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2009	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2010	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2011	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2012	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2013	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2014	Toyota	Tacoma	Pre Runner	6 LUG,6 LUG
2006	Toyota	Tacoma	SR5 Prerunner
2007	Toyota	Tacoma	SR5 Prerunner
2008	Toyota	Tacoma	SR5 Prerunner
2009	Toyota	Tacoma	SR5 Prerunner
2006	Toyota	Tacoma	TRD Sport Prerunner
2007	Toyota	Tacoma	TRD Sport Prerunner
2008	Toyota	Tacoma	TRD Sport Prerunner
2009	Toyota	Tacoma	TRD Sport Prerunner
2005	Toyota	Tacoma	X-Runner	6 LUG
2006	Toyota	Tacoma	X-Runner	6 LUG
2007	Toyota	Tacoma	X-Runner	6 LUG
2008	Toyota	Tacoma	X-Runner	6 LUG
2009	Toyota	Tacoma	X-Runner	6 LUG
2010	Toyota	Tacoma	X-Runner	6 LUG
2011	Toyota	Tacoma	X-Runner	6 LUG
2012	Toyota	Tacoma	X-Runner	6 LUG
2013	Toyota	Tacoma	X-Runner	6 LUG
